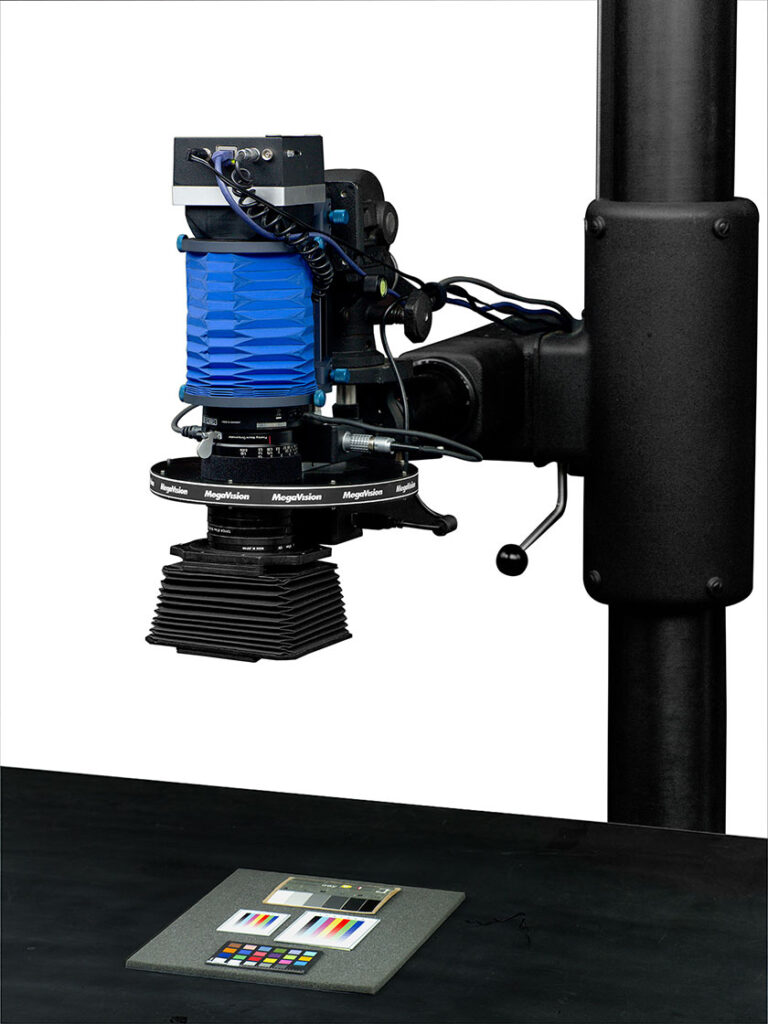

E7 – 50mp
The E7 is MegaVision’s 50 Megapixel solution to uncompromising medium format digital image capture. With a full frame sensor that is twice the size of full frame 35mm format, the E7 provides image quality impossible to match with smaller format image captures.
With an image area of 37mm X 49mm, the E7 can take advantage of the best technical camera lenses which typically have upwards to 70 mm focal-plane coverage.
In a reprise of the first professional quality color image capture pioneered by MegaVision, the Monochrome E7 (E7-mono) may be coupled with MegaVision’s USB color wheel or multi-spectral LED lighting for the ultimate in image quality and unrivaled color reproduction accuracy.
For those who desire eliminating Bayer pattern compromises, MegaVision’s monochrome option, whether used alone for B&W capture or together with a color wheel or LED lights for multi-shot color capture, offers the most demanding imagers compelling solutions simply not possible with conventional digital or film solutions.
| Sensor | Full Frame CCD |
| Pixel Size | 6.0 μm square |
| Max Resolution | 8176(H) x 6132(V) —- 50.1 Mpixels |
| Max Image Area | 49.1mm (H) X 36.8mm (V) —- 61.3 mm diagonal |
| Size | 3.25” Wide X 4” long X 2.0” deep (8.3cm X 10.2cm X 5.1 cm) Note: Size does not include mating connectors and optics. |
| Weight | 16oz (450 grams) |
| Environmental Operating | 0-30C non-condensing |
| Storage | -10-50C non-condensing |
| Power | Supplied through separate coaxial power connector 10-24 V DC Nominal: 9 watts, Max 11 Watts on read-down (approx) |
| Hardware Trigger input | Input for trigger: 2-Pin Lemo Connector Trigger on Low transition: (TTL logic level) Integration completes on return to high |
| Strobe Trigger | Output PC connector, Nikon type with screw threads |
| Indicators | Single Green/Red LED Green Solid: Enabled and ready to capture Flashing: integrating Red Busy—not ready to capture |
| S/N | 70 dB at base gain |
| Live Focus | Supported at all binning modes, shutterless and with AutoStop shutter |
| Binning | 1X, 2X, 4X, 8X |
| Color | Monochrome or RGB Bayer pattern |
| User controls | Power switch only. All controls through software |
| Gain | Software controlled, 4X via 14 bit -12 bit map |
| ISO | Color: 100—400 Mono: 200-800 at 1X Bin, double at 2X Bin |
| Read down time | 1.3 seconds (includes transfer to host computer) |
| Bits per color(mono)/total ADC | 14/46 Mapped:12/36 File: 16/48 |
| File Sizes RAW .DNG | Monochrome/Bayer: 100 Mbytes (uncompressed, unpacked) Color Wheel: 300 Monochrome/Bayer: <40 Mbytes, (typical, lossless compression) |
| File Sizes .TIFF | (Uncompressed) 50 Mbytes mono / 150 Mbytes color at 8 bits/color 100 Mbytes mono / 300 Mbytes color at 16 bits/color |
| File Sizes .JPG | < 15 Mbytes Mono / < 30 Mbytes color visually lossless compression |
| Host Cameras | Most Technical and mechanical medium format camera bodies |
| Connectivity | Camera Link, Gigabit Ethernet |
| Host | Tablet/Computer Operating System: Windows – 64 bit Professional recommended Display: Recommended minimum: 1024 X 600 for location 1280X1024 for studio Processor Recommended minimum: Core duo for location Core i5 for studio Memory Recommended minimum: 2 Gigabytes for location 4 Gigabytes for studio Disk Drive: 8 Gigabytes unused |
Gigabit Ethernet or Camera Link connectivity ensure reliable and fast image transfers for sustained high speed image downloads to a supported tablet, laptop, or desk computer. With a data rate of 44 Megapixels/second, an uncompressed image is transferred from the E7 to a host computer in about 1.2 seconds.
Live focus eliminates the need for a ground glass or a sliding back adapter on technical cameras. Binning enables both rapid-update live focus, as well as extreme low-light capture with reduced resolution.
The E7 is available in both color and monochrome. Adapters are available for a range of technical cameras and medium format camera bodies.
Who is it for?
Institutions and individuals who desire eliminating Bayer pattern compromises and seek a mid-range solution towards ultimate image quality and unrivaled color reproduction accuracy.
