120mm f/4.5 Macro UV-IR Apochromat

The MegaVision 120mm f/4.5 Macro UV-IR Apochromat is an innovative view/technical camera lens that incorporates both floating element and advanced UV-VIS-IR apochromatic color correction technology.

After setting focus in visible light, no refocusing is necessary for either ultraviolet or infrared imaging, thus enabling extremely precise color channel registration in multispectral applications.

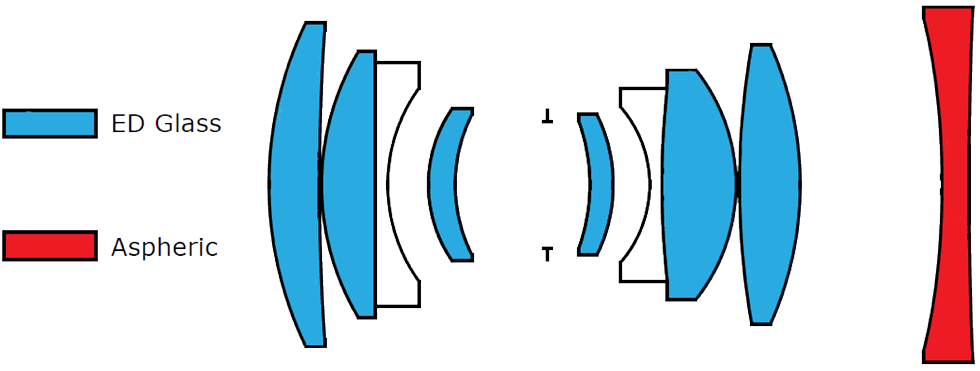

Six ED glass elements and one aspheric element are used to achieve an unprecedented level of performance for multispectral documentation, forensics, scientific imaging, and fine-art photography.

The excellent color correction is also valuable in visible light photography because it completely eliminates the purple fringing suffered by other lenses in high contrast outdoor scenes. The adjustable floating element, unique among view camera lenses, ensures superb optical correction at all object distances.

Focal length120 mm
120 mmAperture range: f/4.5 to f/45
Aperture rangef/4.5 to f/45
Waveband320 to 1100 nm
Image circlef/4.5 70 mm
Image circlef/16 100 mm
Length118 mm
Max. diameter75 mm
Weight726 grams
Min. object distance0.47m
Max. image scale1:1
Shutter:Copal #0

Digital shutter may be powered and controlled over USB using Photoshoot Control software or other applications. While the digital shutter integrates seamlessly with MegaVision’s digital backs and is incorporated into the EV camera, MegaVision PhotoShoot Control software enables shutter operation with other digital backs and in other capture environments.

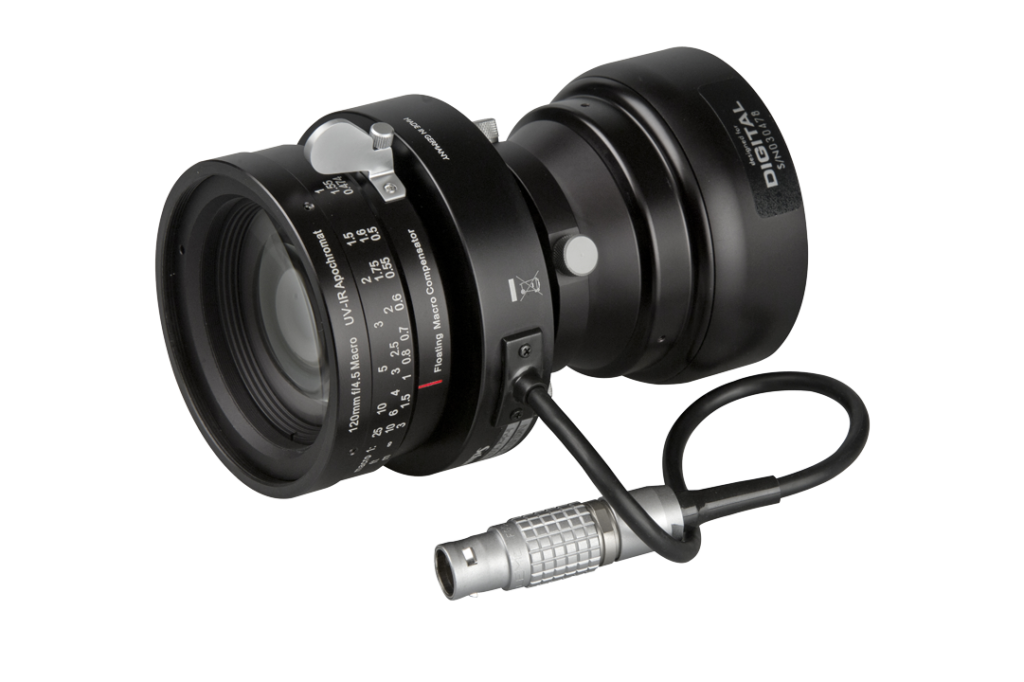

The UV-IR Apochromat is available with either a standard or digital copal-0 shutter


Who is it for?

Institutions and individuals who aim to achieve an unprecedented level of performance for multispectral documentation, forensics, scientific imaging, and fine-art photography.
