SpectraMetrik

Integrated Camera and Light Stand
for MultiSpectral Imaging and Fine Art Reproduction

The all-in-one copystand: your portable imaging studio in a bag

    • Supports cameras up to 7Kg (16 lbs) (additional weight possible with motion limitations).
    • When the column is separated and the light arms are retracted, the copy stand may be packed into a 36” rolling duffel and checked as ordinary airline luggage.

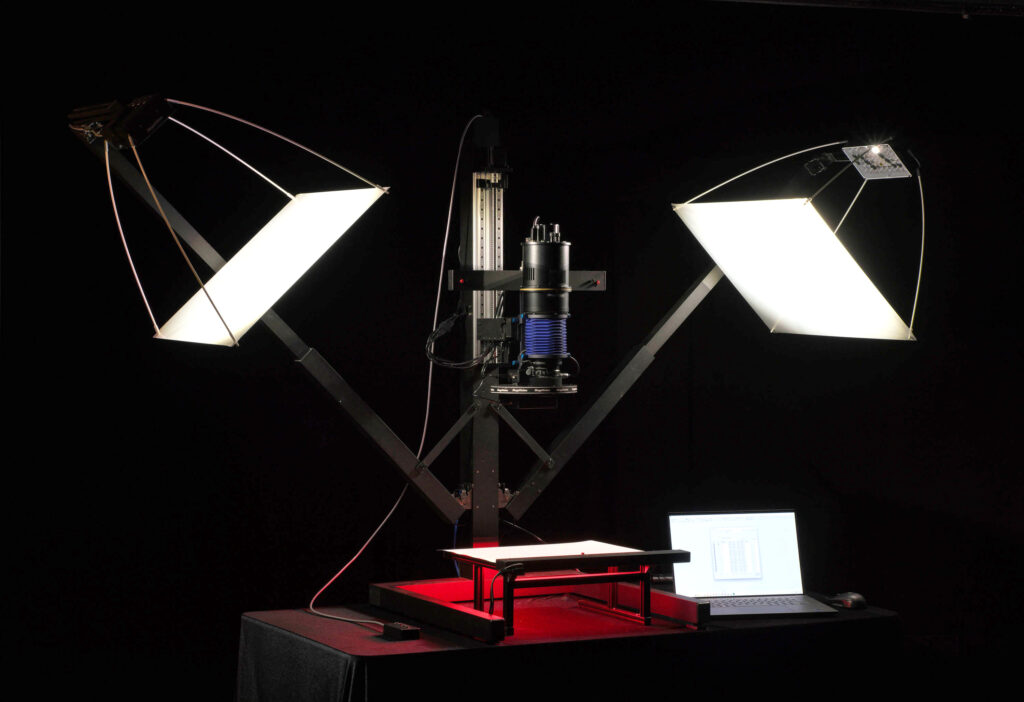

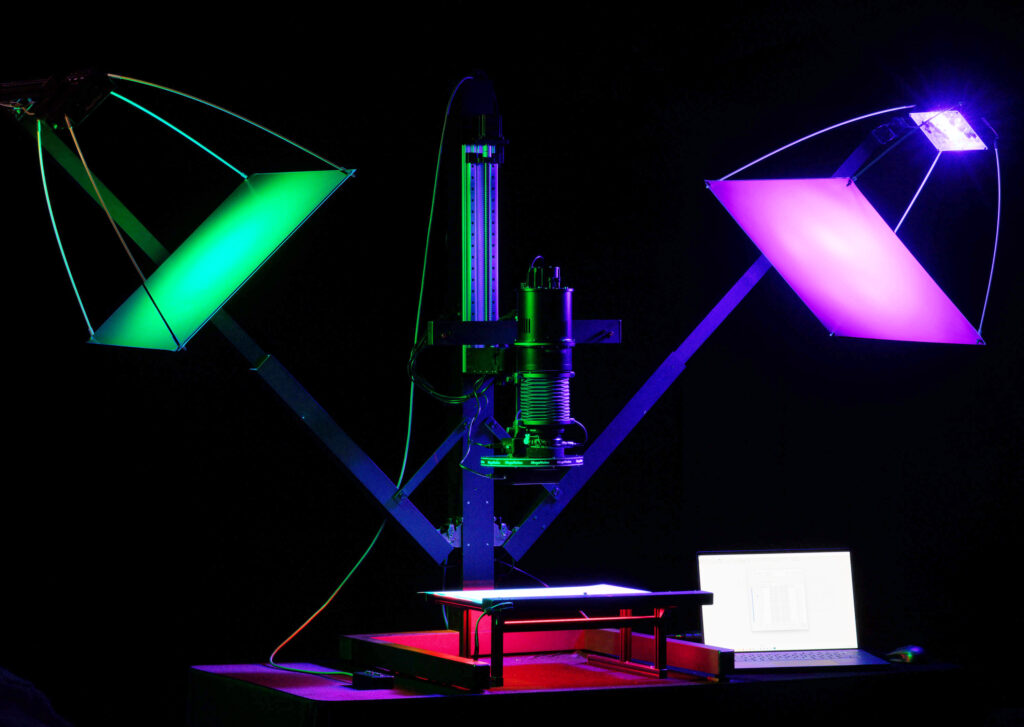

    • Shown in pictures: SpectraMetrik integrated copy/light stand with motor controller, 19-band multi-spectral lights panels, diffusion, Q-15 150Mpixel 2-stage TE cooled camera with 120MM UV-VIS-IR APO-MACRO lens, Dual Filter Wheel, Laser Alignment Tool, and host laptop computer with PhotoShoot MSI capture software.
    Height1.3M (50”)
    Max Supported Camera Weightup to 7Kg (16 lbs) (additional weight possible with motion limitations)
    Supported AttachmentsStandard 1/4-20 and 3/8-16 camera/light
    Max Lights DistanceHinged telescoping light support arms extend to 150cm (59”)
    Light AnglesA 45° lock facilitates setting up for normal imaging
    Additional Light AnglesLock is easily unlocked allowing the lights to be set at custom angles for specialized applications
    Max Illumination AreaAt full extension, over 50X50 cm (20X20”) is illuminated
    Supported Camera MountsAdapters are available to mount nearly any professional camera or light source on the SpectraMetrik stand
    U-base60cm X 60 cm (24” X 24”)

    The U base quickly disassembles and the copy stand column separates into 2 pieces for ease of transport.
    Weight:Column and light arms 20kg (44 lbs)
    Base 6kg (14 bs)
    Camera Support Motor Controllerup fast, up slow, down fast, down slow
    Power Required110/220, 50-60HZ, .5 amp
    (up to 2 amps additional current may be required depending on light, camera, and host computer power requirements, all of which may be supplied by the column)
    IntegrationPower supplies, controllers, USB Hub and cables reside inside the column.

    SpectraMetrik

    Integrated Camera and Light Stand

    Who is it for?

    Institutions and individuals who aim to achieve an unprecedented level of performance for multispectral documentation, forensics, scientific imaging, and fine-art photography.
